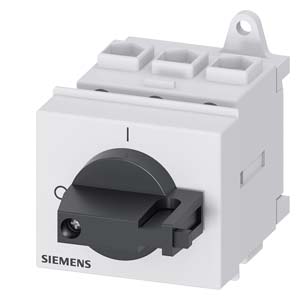

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 32 A, Operating power / at AC-23 A at 400 V: 11.5 kW, installation in distribution boards, knob-operated mechanism, black, handle direct at the switch
Model
Product brand name SENTRON
Product designation 3LD Switch disconnector
Design of the product Main switch
Display version / for switch position indicator manual
operation
1 ON - 0 OFF
Design of the operating mechanism selector switch
Design of handle knob-operated mechanism, black
Type of the driving mechanism / motor drive No
General technical data
Number of poles 3
Type of device fixed mounting
Type of switch DIN-rail mounting
Size of switch disconnector 2
Electrical endurance (switching cycles)
● at AC-23 A / at 690 V 6 000
I2t value / with closed switch / at 690 V / for
combination switch + gG fuse / maximum
9 kA2.s
