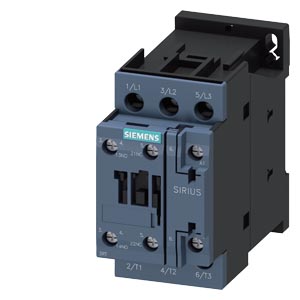

Contactor 3RT6026-1AN20

Contactor AC 220 V 50/60 HZ AC3 11 kW 400 V AUX contacts 1 NO +1 NC 3-pole, size S0 screw terminal

Product brand name SIRIUS Product designation Power contactor Product type designation 3RT6 General technical data Size of contactor S0 Product extension ● Auxiliary switch Yes Insulation voltage ● rated value 690 V Degree of pollution 3 Surge voltage resistance rated value 6 kV maximum permissible voltage for safe isolation ● between coil and main contacts acc. to EN 60947-1 400 V Protection class IP ● on the front IP20 ● of the terminal IP20 Shock resistance at rectangular impulse ● at AC 8,3g / 5 ms, 5,3g / 10 ms
