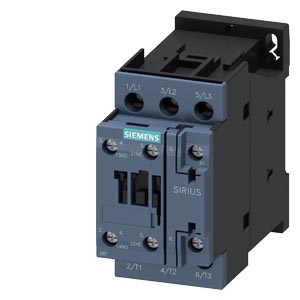

Contactor relay AC 380V 50 HZ AC3 11 kW 400 V AUX contacts 1 NO + 1 NC 3-pole, size S0 screw terminal
Product brand name SIRIUS
Product designation Power contactor
Product type designation 3RT6
General technical data
Size of contactor S0
Product extension
● Auxiliary switch Yes
Insulation voltage
● rated value 690 V
Degree of pollution 3
Surge voltage resistance rated value 6 kV
maximum permissible voltage for safe isolation
● between coil and main contacts acc. to EN
60947-1
400 V
Protection class IP
● on the front IP20
● of the terminal IP20
Shock resistance at rectangular impulse
● at AC 8,3g / 5 ms, 5,3g / 10 ms
